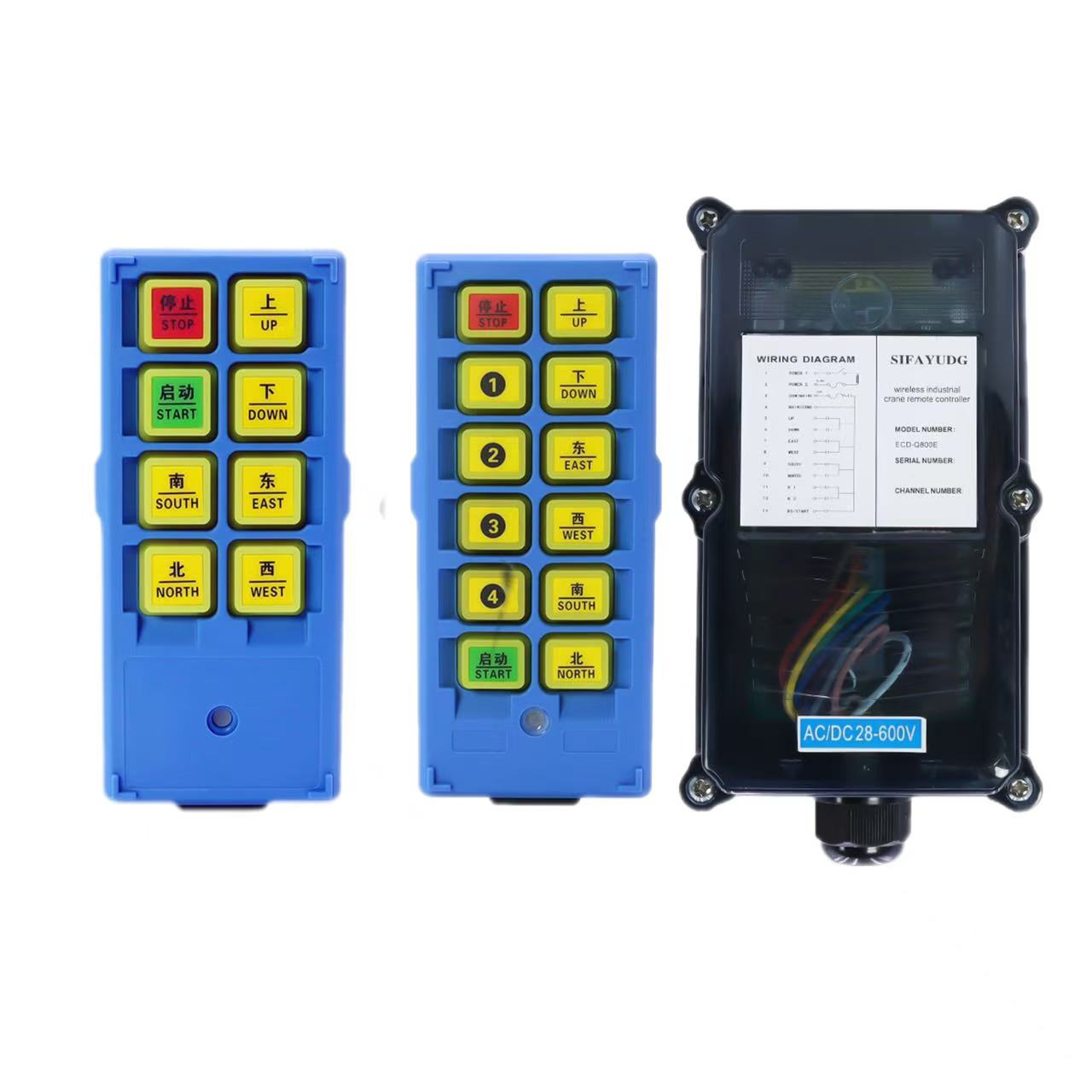

Push button industrial radio remote control for sale
Applicable fields: lifting machinery, construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, CNC machine tools, explosion-proof machinery, special vehicles and other eight fields.
Product Structure: It is mainly composed of buttons, shells, circuit boards and other components, and can produce industrial wireless remote controls with multiple key positions and colors according to actual customer needs.
Response time ≤ 20MS
Adaptable temperature -25℃～+85℃
Remote control distance 225 meters (customizable)
Signal transmission rate 9600 bits/second
More details

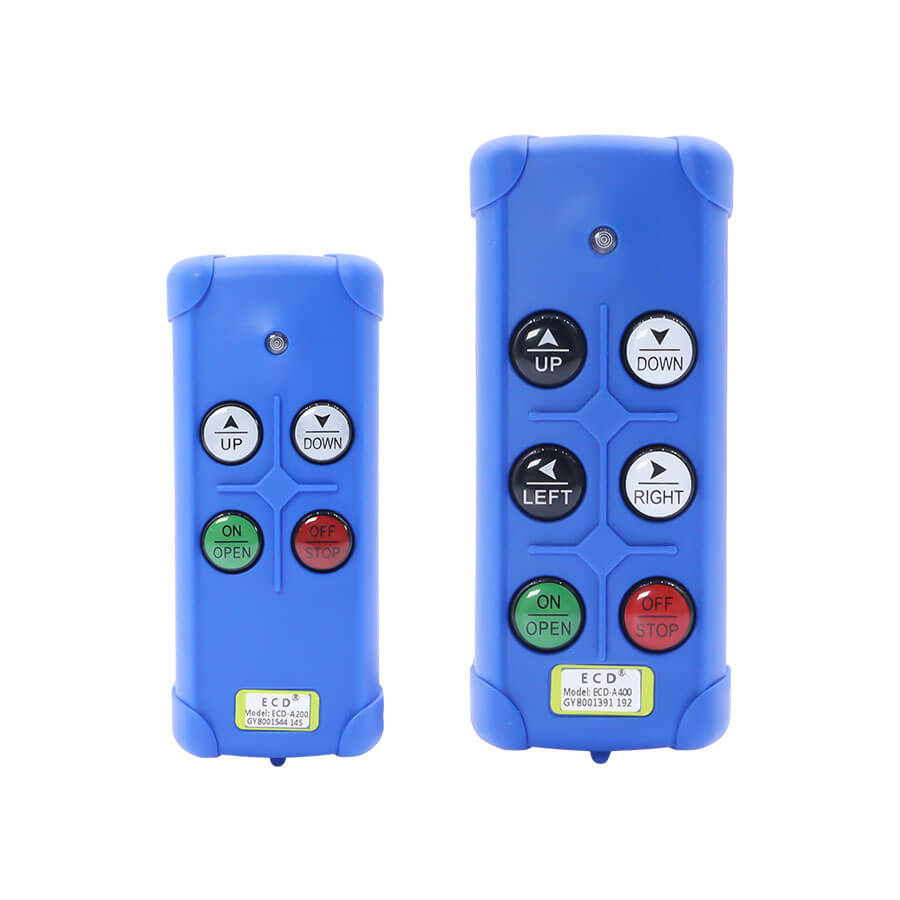

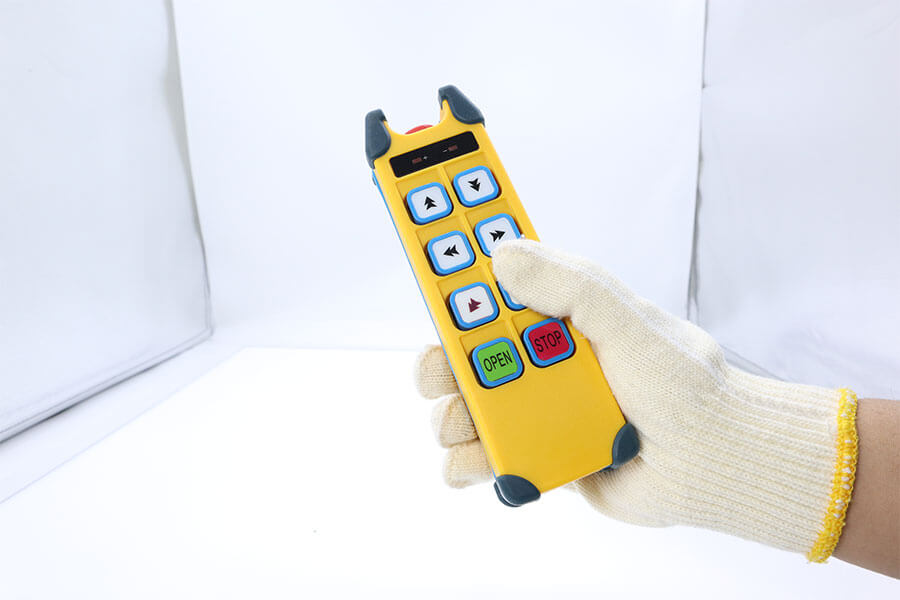

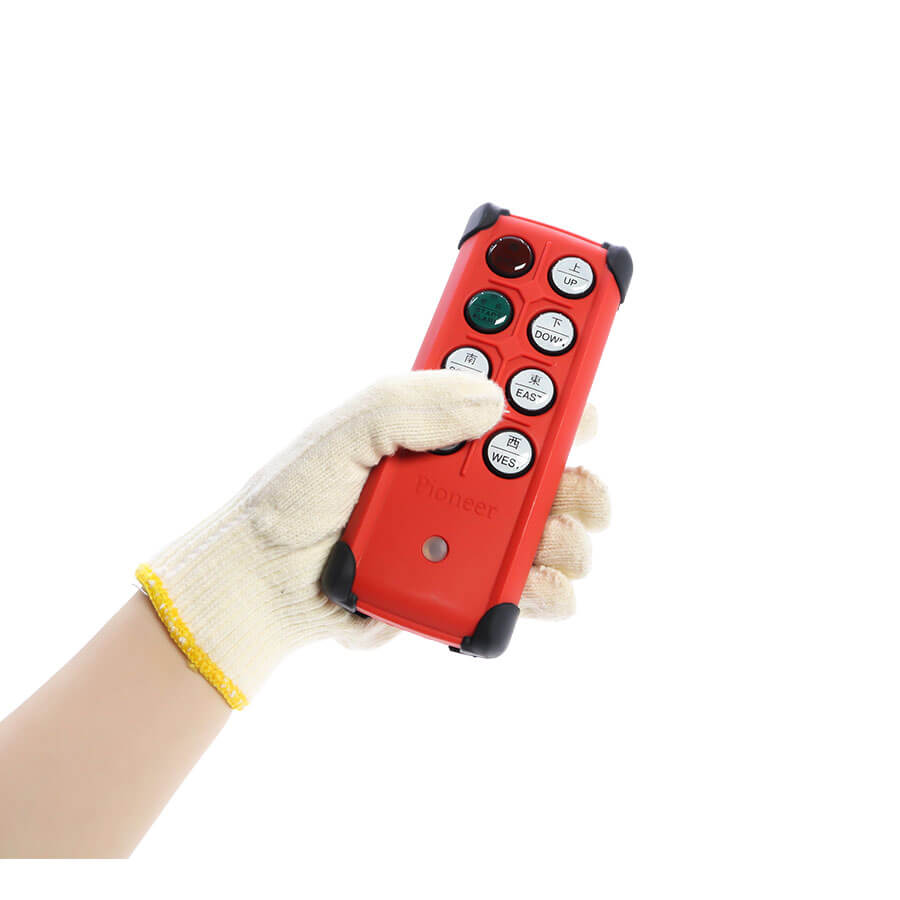

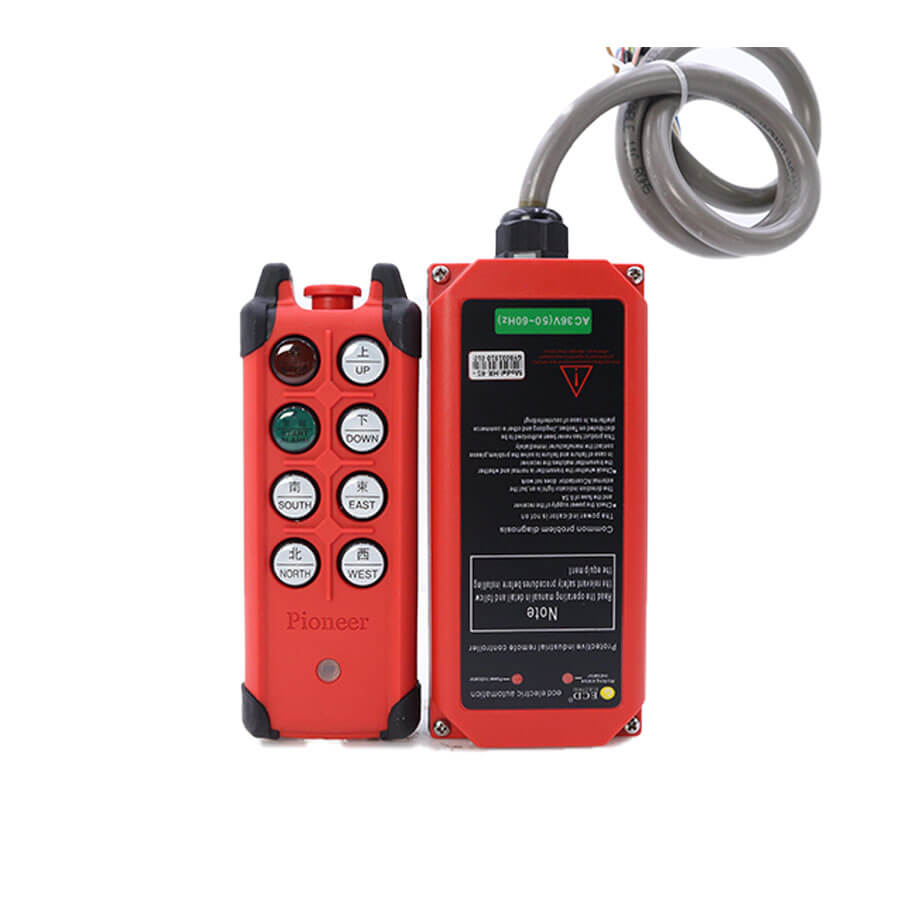

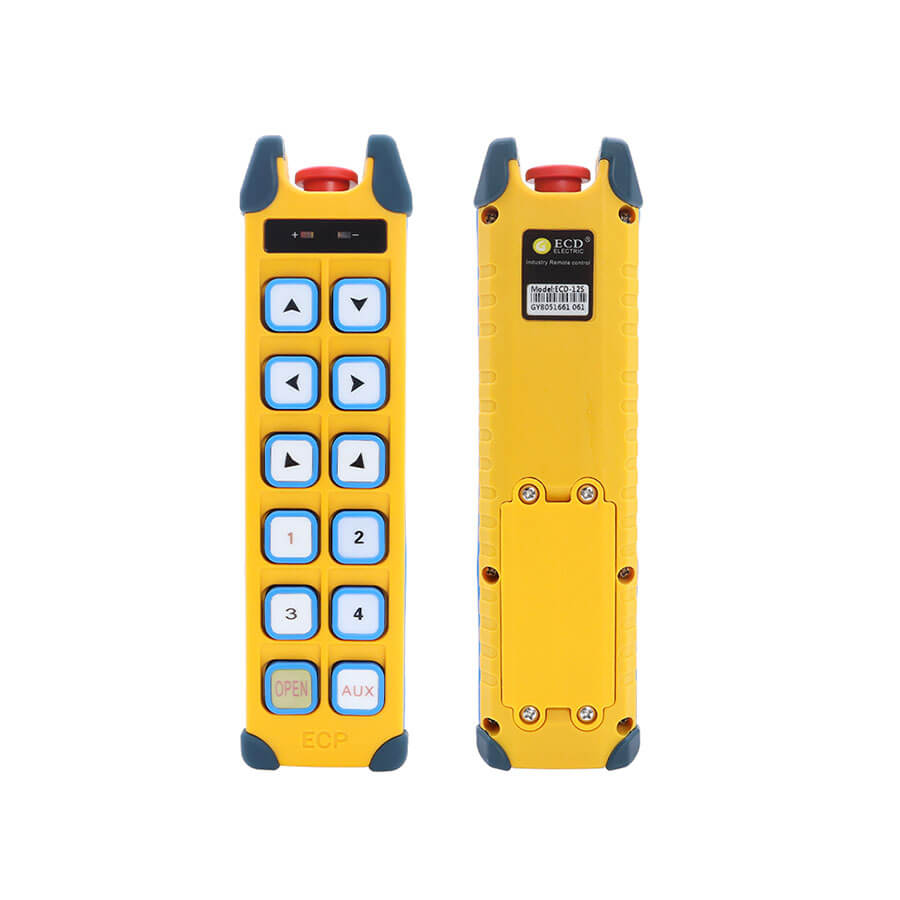

Push-button industrial wireless remote control
The signal is stable and has strong penetration, and it can still work normally in complex environments.
IP65 waterproof and dustproof, it can also be used normally in harsh environments such as high oil pollution and high temperature.

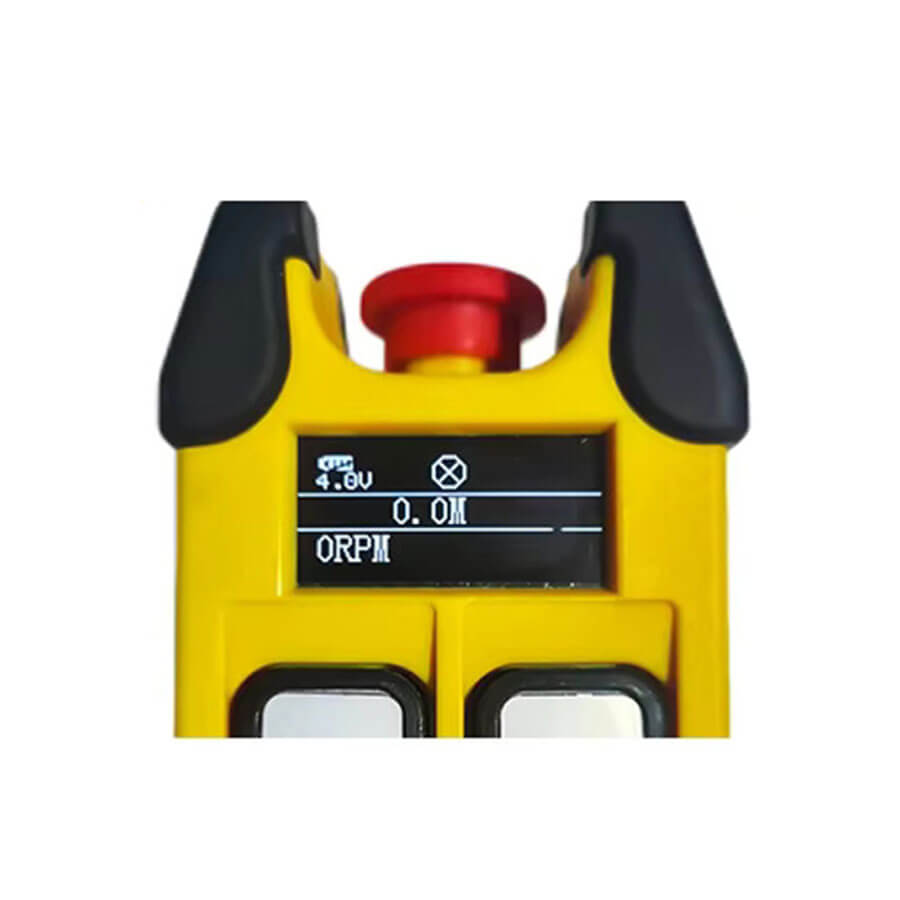

The display screen can show the battery power; signal strength; operation direction; it can be customized according to the actual needs of the user.
The remote control has a dedicated speed control button, which can freely control the engine speed.
Rechargeable lithium battery, large battery capacity, long battery life, equipped with a charger.
High-purity copper conductors and connection ports are used.
Product Introduction

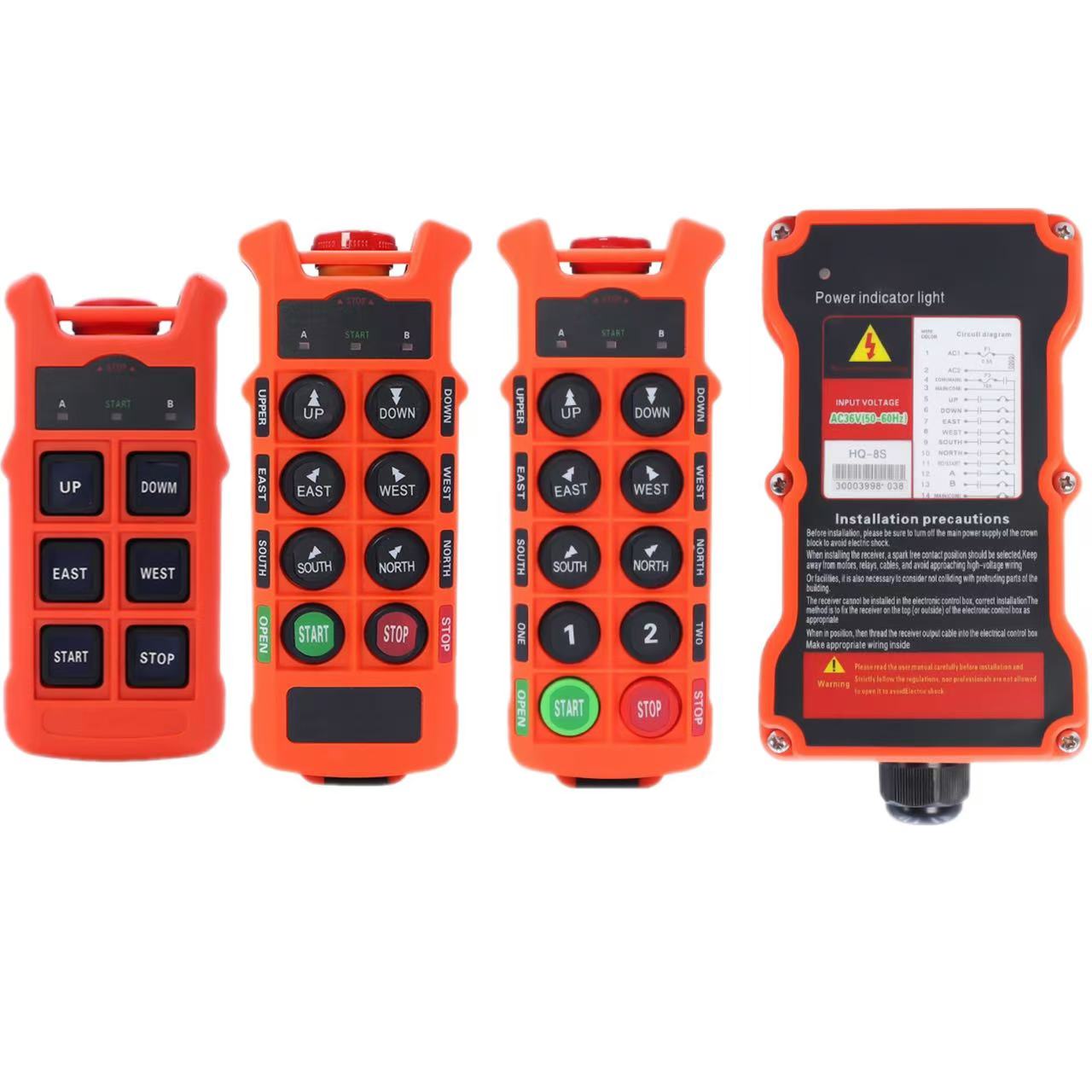

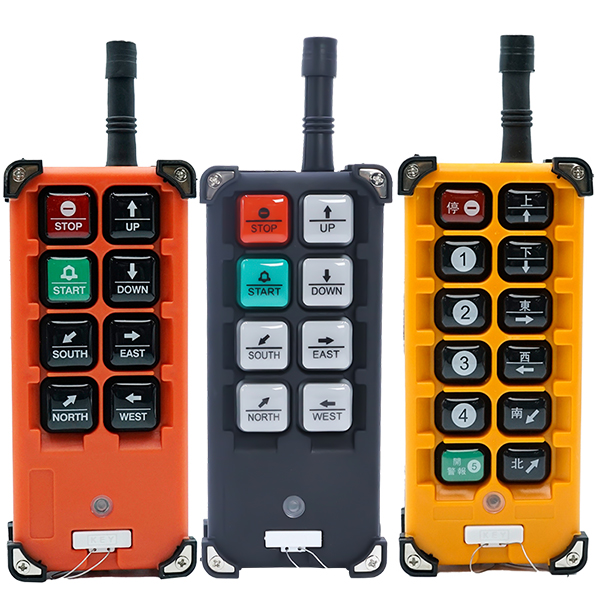

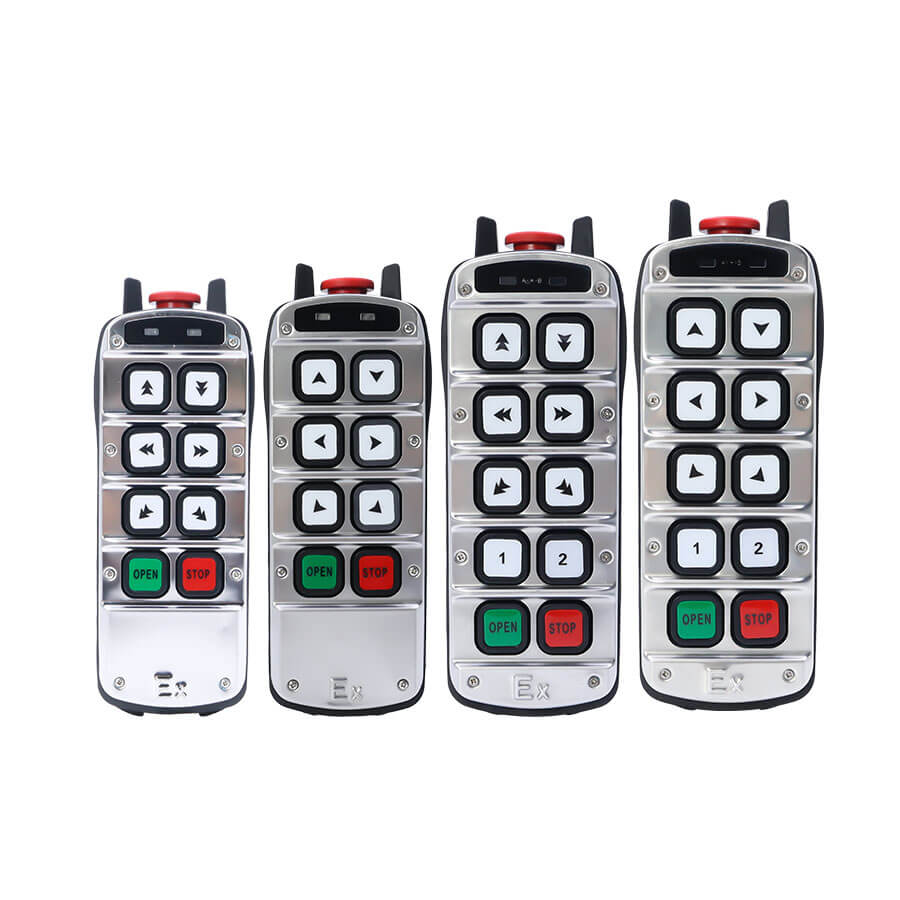

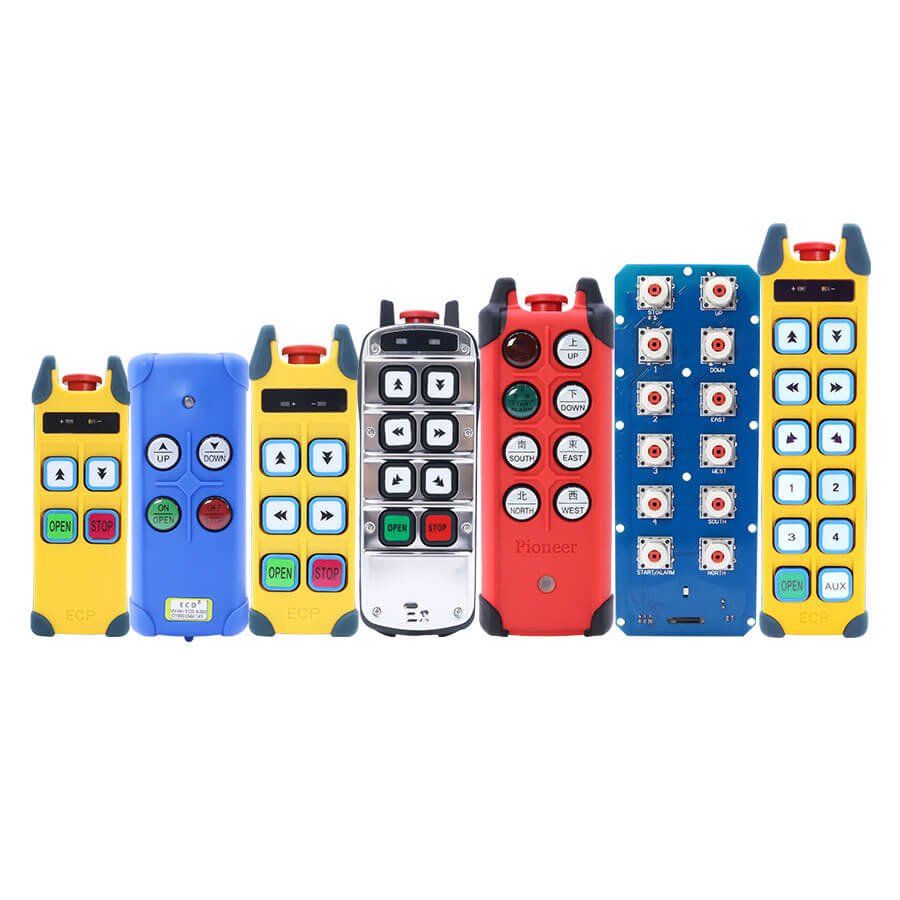

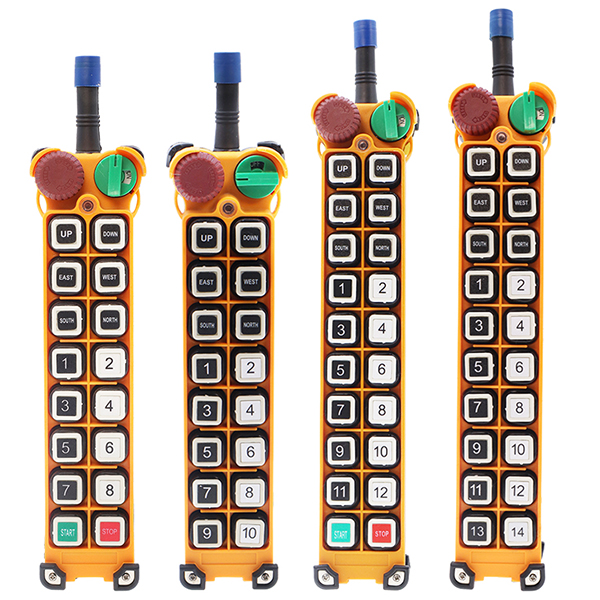

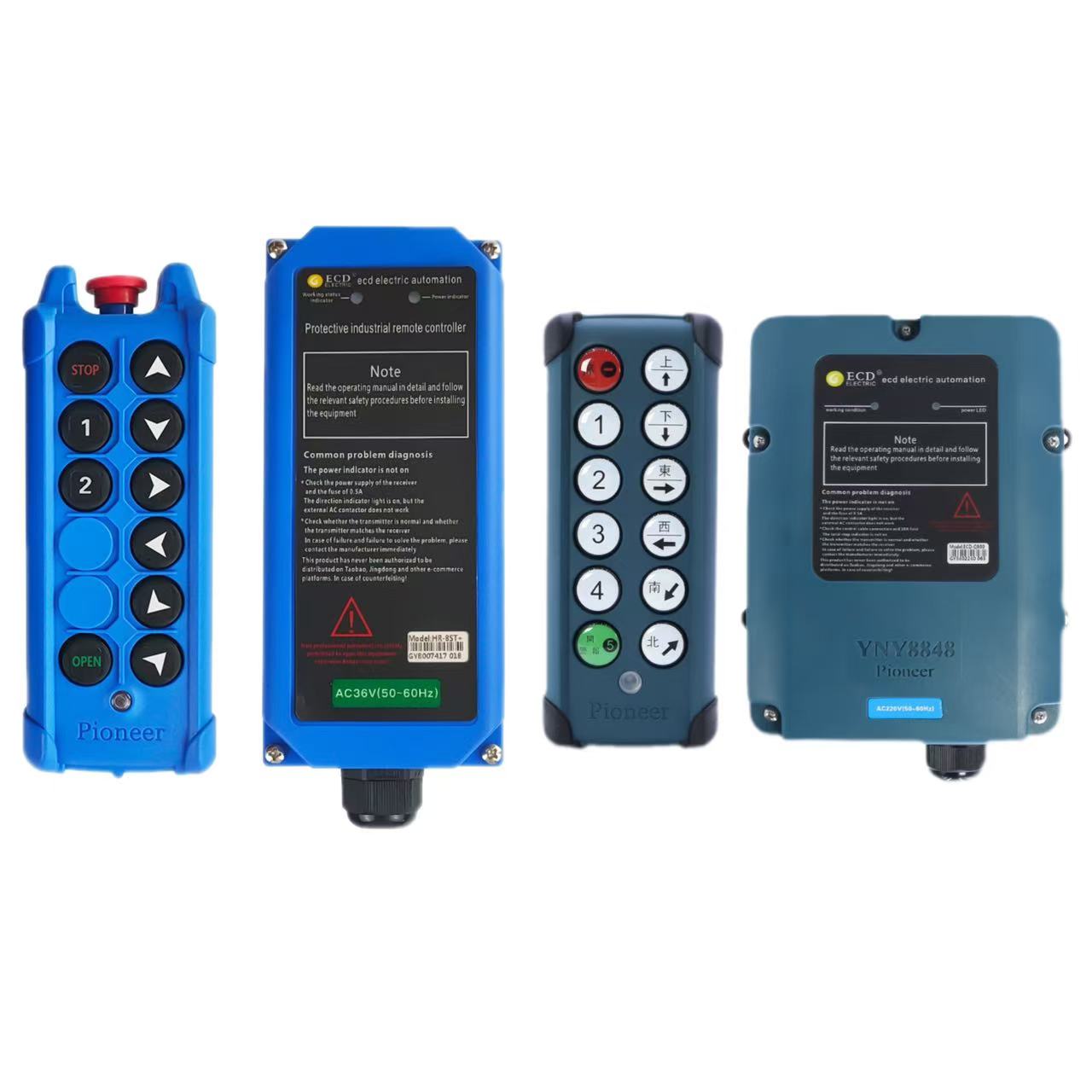

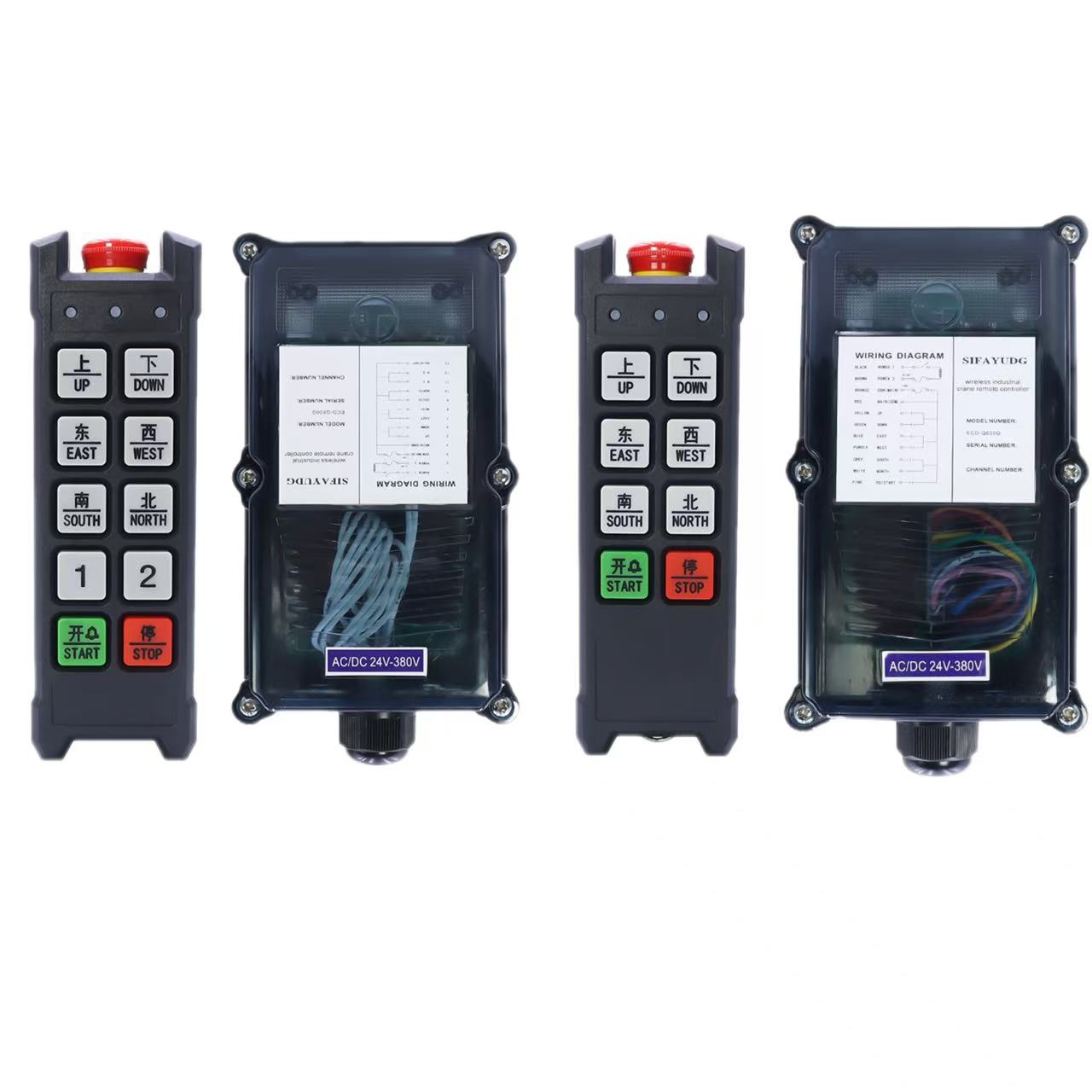

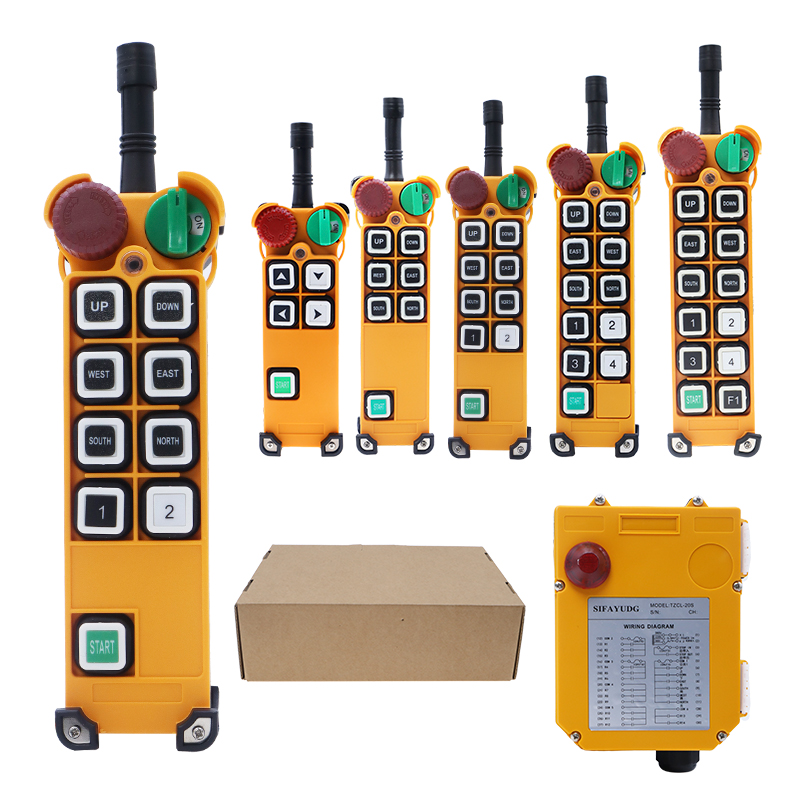

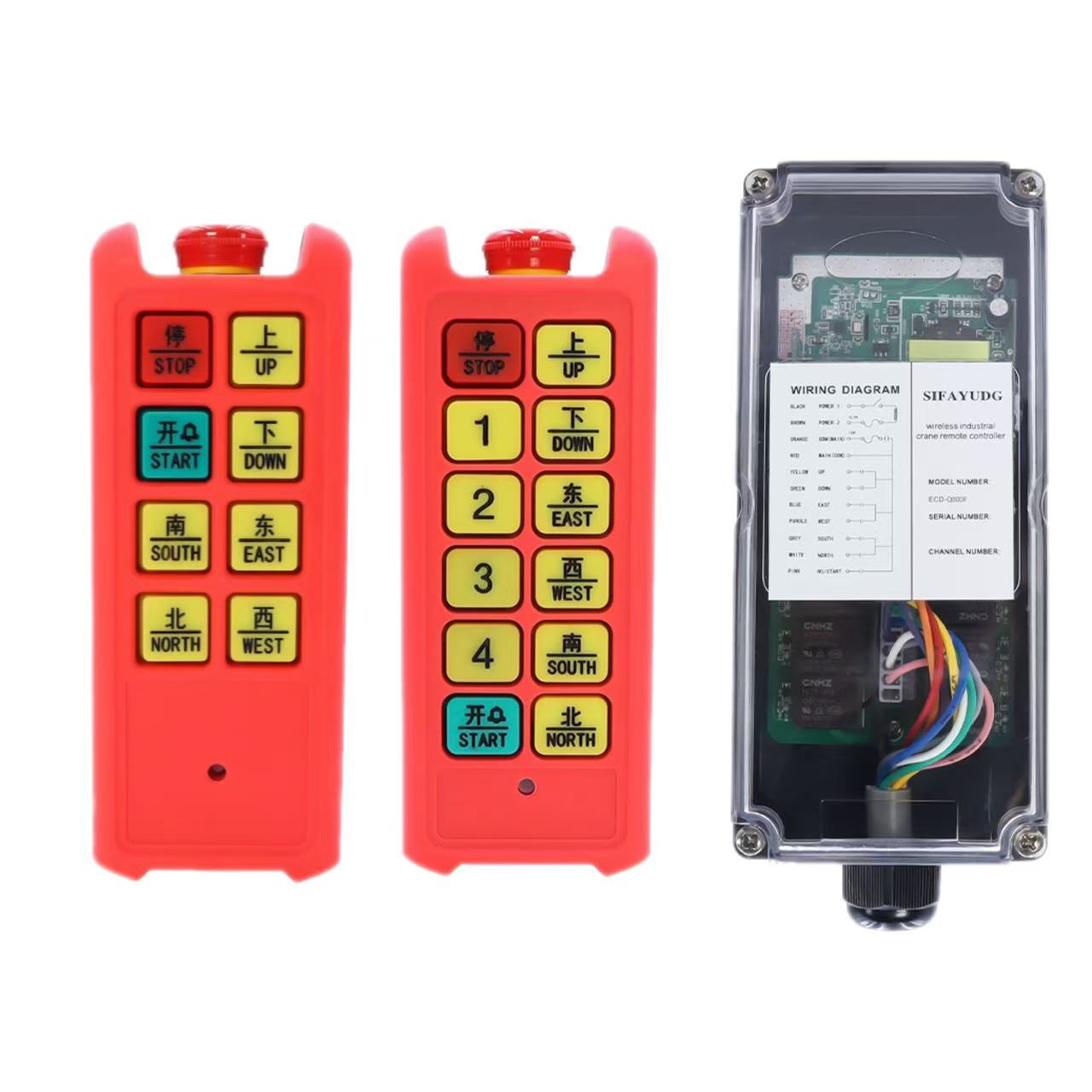

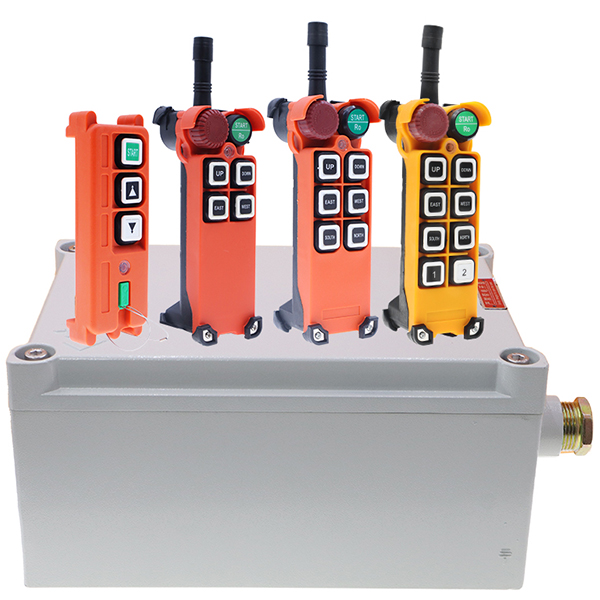

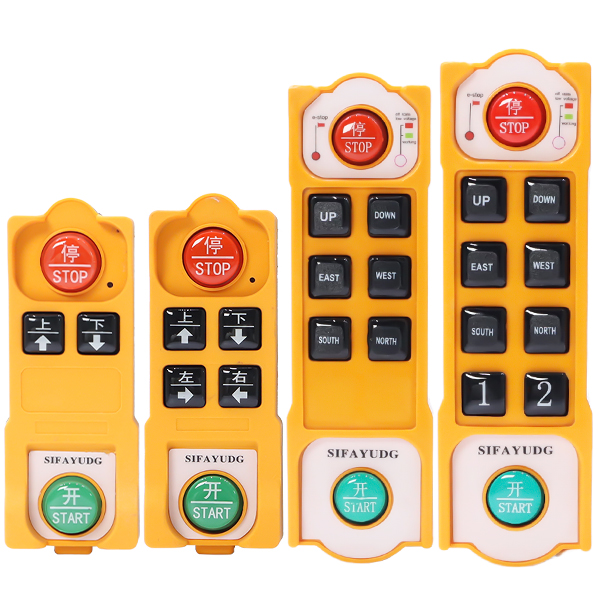

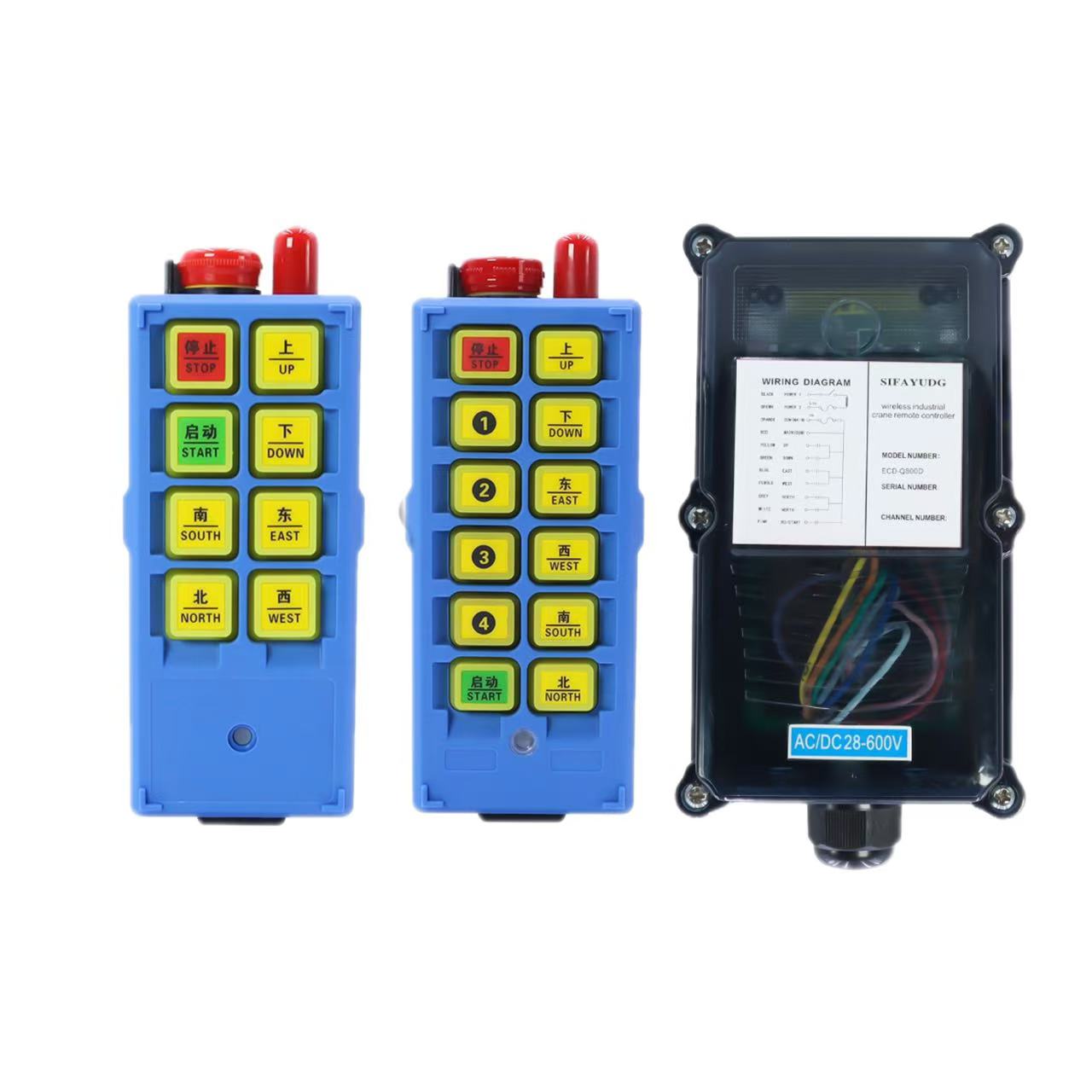

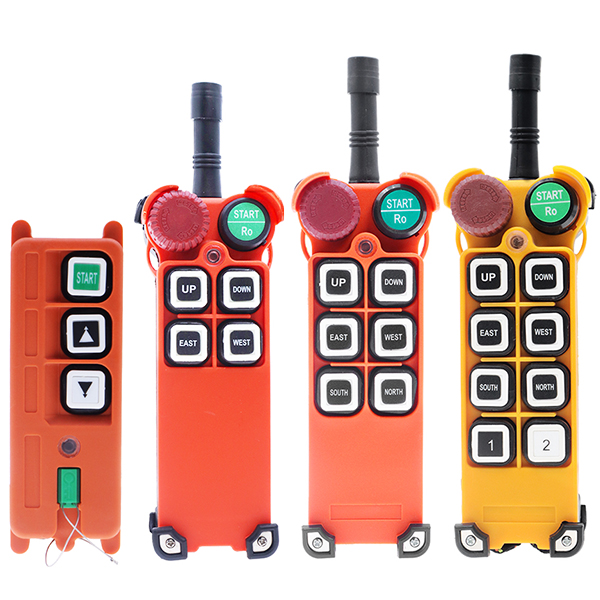

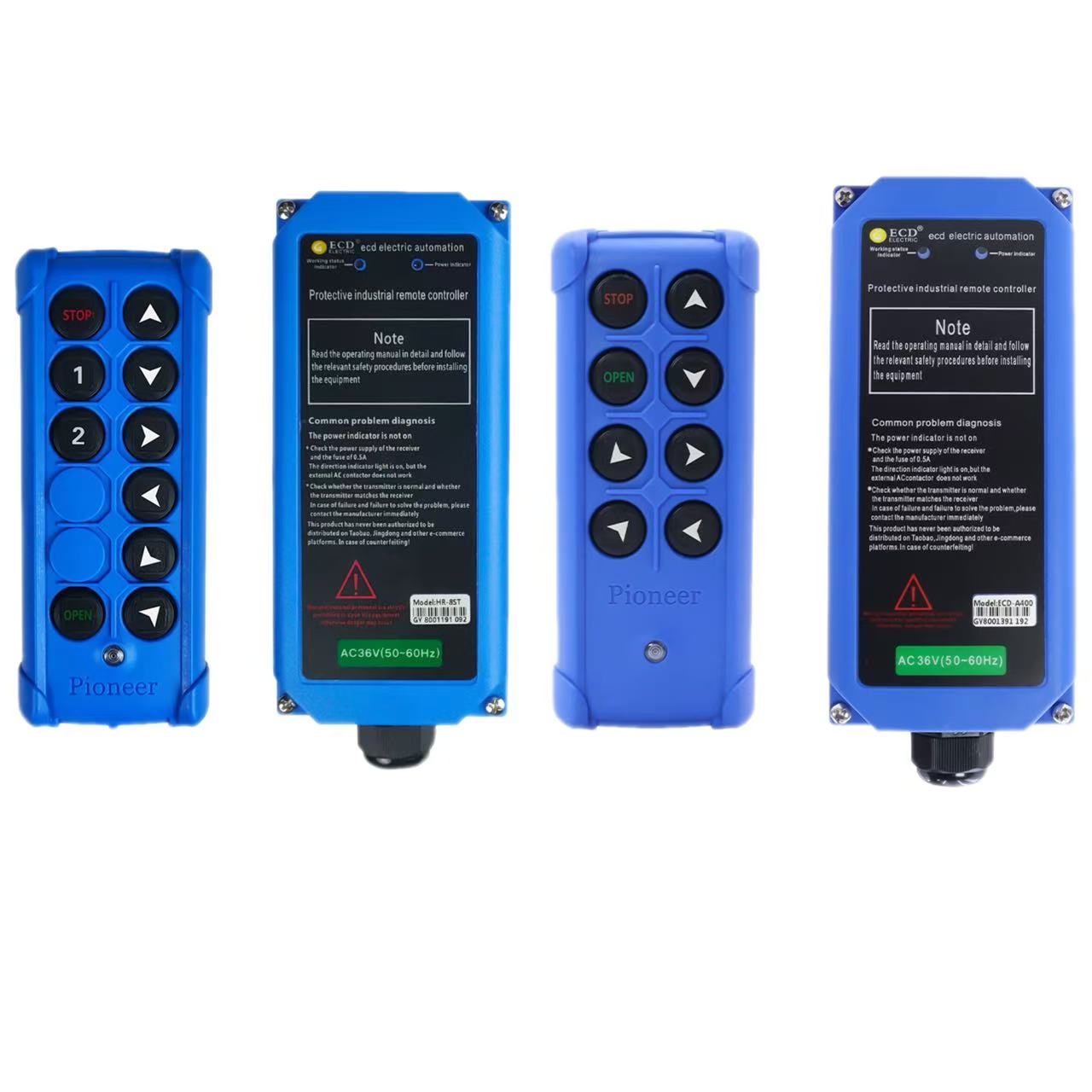

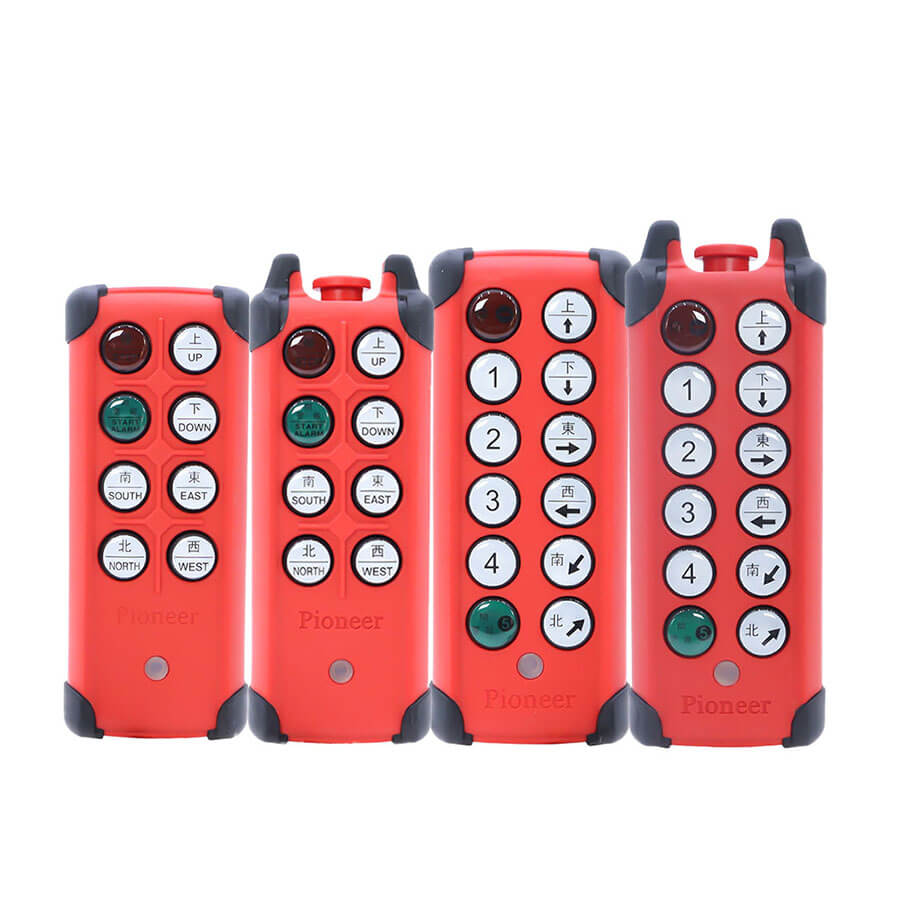

More types of industrial radio remote control equipment we produce
The push-button industrial radio remote control is a type of portable industrial wireless remote control produced by our company. It can be applied to various mechanical equipment, such as cranes, loaders, concrete pump trucks, stackers, tractors, harvesters and other industrial and agricultural equipment.
ECD-Q Series Quote
ECD-D/S Series Quote
HR-DK/SK Series Quote
HR-A Series Quote
HR-DEX/SEX Series Quote
SKJC-S/D SERIES QUOTE
QZJX-S/D SERIES QUOTE
FBJX-S/D SERIES QUOTE
NLJX-S/D SERIES QUOTE
TZCL-S/D SERIES QUOTE
GCJX-S SERIES QUOTE
ECD-QG SERIES QUOTE
ECD-QA SERIES QUOTE
ECD-HQ SERIES QUOTE
ECD-QB SERIES QUOTE
ECD-QC SERIES QUOTE
ECD-QD SERIES QUOTE
ECD-DZ SERIES QUOTE

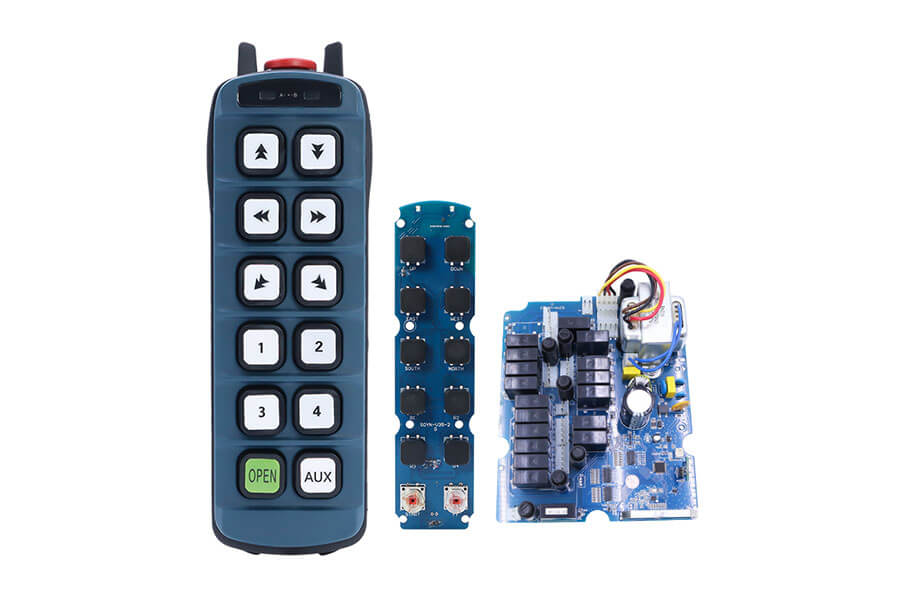

Product Structure
High quality product parts
The shell of the push-button industrial remote control produced by Henan Nomi is one-time die-cast; the interior uses selected pure copper cables to achieve fast wiring; the dedicated PCB board uses the internationally renowned brand Jiantao FR-4 board; the remote control relay uses the well-known American brand TE; the remote control dedicated crystal uses military-quality anti-interference crystal; the main chip uses the Texas Instruments TI brand; the magnetic switch uses the internationally renowned brand Lite; the key uses the Alps brand; the diodes and transistors use the Renesas and Rohm brands; the resistors and capacitors use the Atsushi and Fenghua brands.
Details determine quality
Quality determines the future
Logo customization
The logo style can be customized according to customer needs

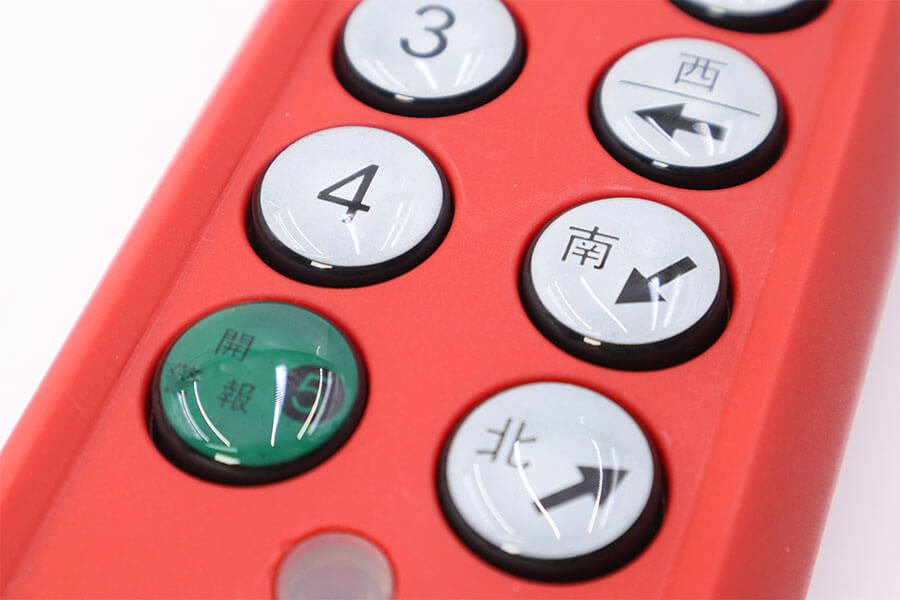

Icon customization
Button icon styles are available in multiple styles
Function customization
Button functions and quantity can be customized freely
Customizable controls
Remote control distance 225 meters or customized
Linkage customization
Customizable transmitter-receiver one-to-many mode
Customizable colors
Can customize various color shells according to customer needs

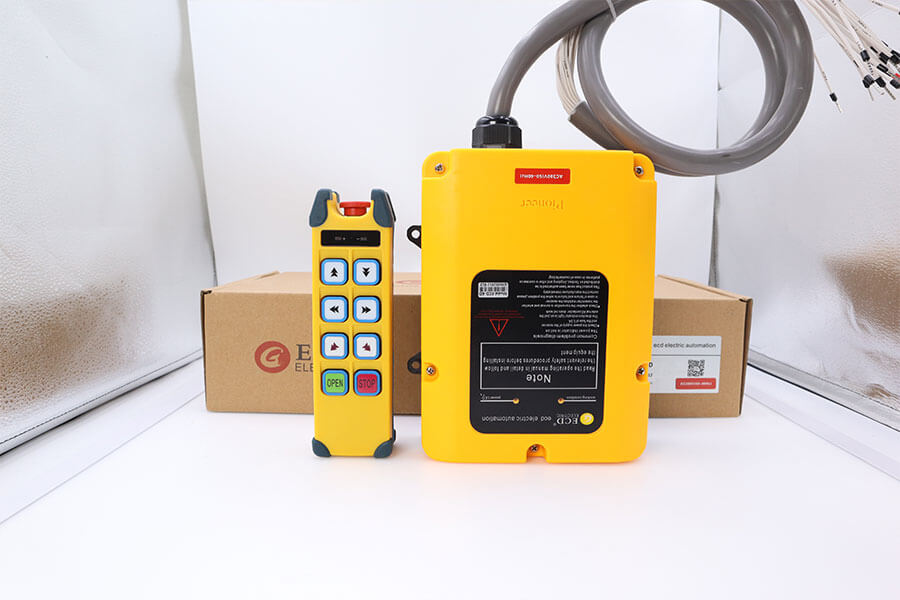

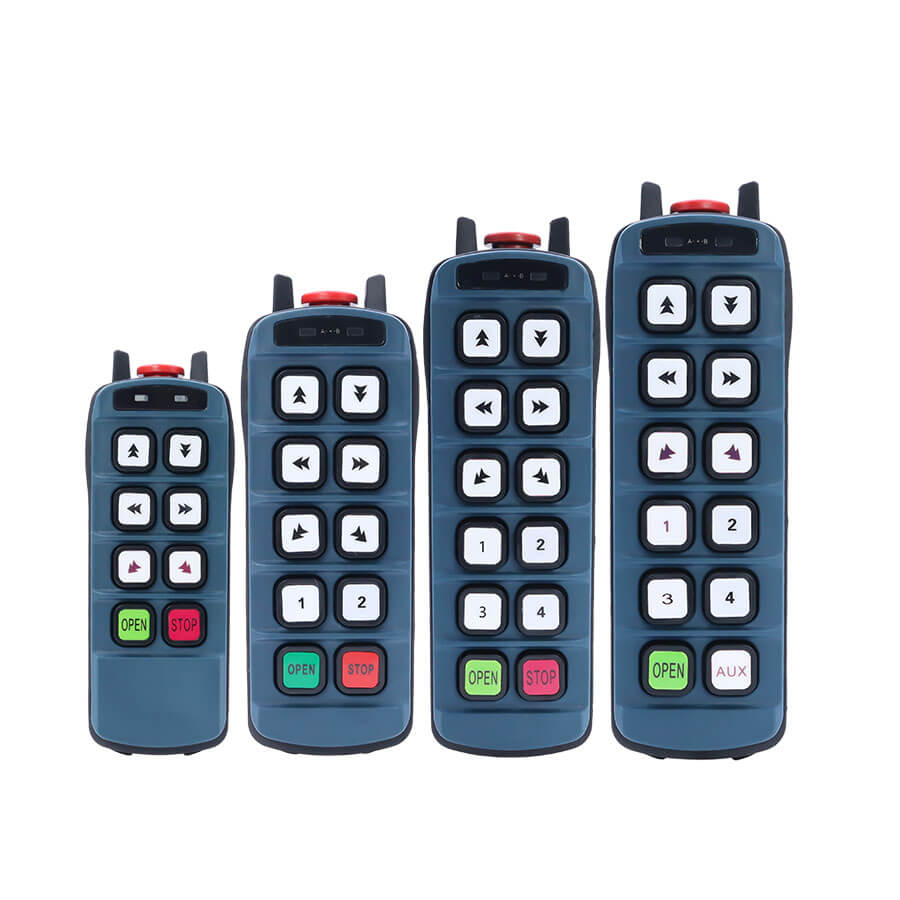

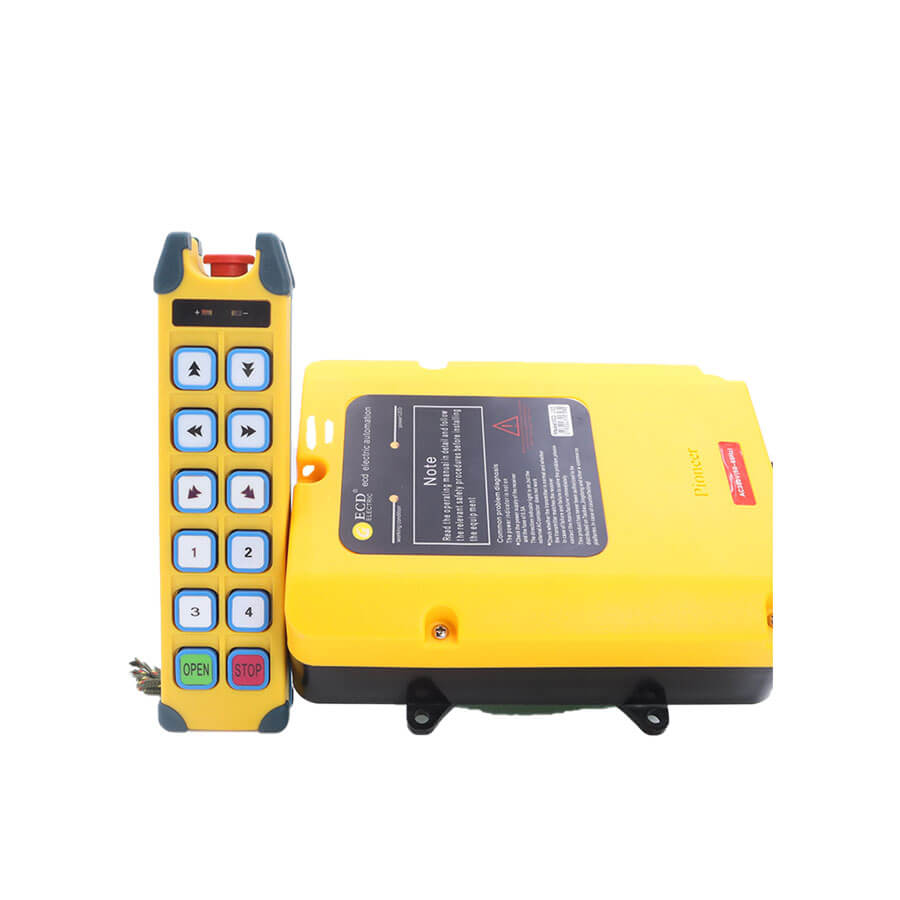

Product display

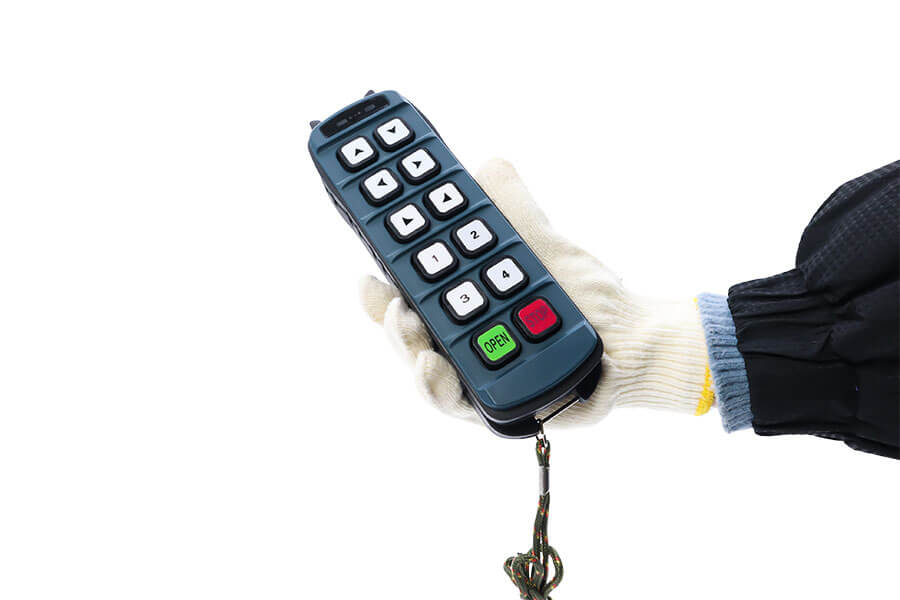

More product details
How it work
Working principle of Push-button Industrial Radio Remote Control
1. Signal modulation and transmission
2. Signal transmission and destination
3. Signal demodulation and decoding
4. Instruction execution and feedback
1. At the transmitter end, the user’s operation instructions are first encoded into digital signals, and then these digital signals are modulated onto high-frequency carriers through modulation technology to form modulated signals suitable for wireless transmission. This modulated signal propagates in space through the antenna in the form of electromagnetic waves.
2. These electromagnetic waves can penetrate media such as air and obstacles and reach the receiver end.
3. At the receiver end, after the antenna receives the electromagnetic waves, it uses demodulation technology to restore the modulated signal on the high-frequency carrier to the original digital signal, and then decodes it to restore it to the user’s operation instructions.
4. The receiver transmits the decoded control instructions to the actuator, and the actuator performs the corresponding actions according to the instructions. After execution, the receiving end of the controlled device will send a feedback signal to the sending end so that the sending end can know whether the control command is successfully executed.
Product Parameters
More parameters of Push-button Industrial Radio Remote Control
| 1. Shell material: PA66 + high-quality fiber | 14. Signal receiving sensitivity: -115 DBM |
| 2. Protection level: IP65/IP68 | 15. Verification method: CRC-1TM |
| 3. Anti-corrosion level: WF2 | 16. Response time: ≤20ms |
| 4. Operation mode: one-button single speed/dual speed | 17. Operating temperature range: -40 degrees — +85 degrees |
| 5. Power supply: AA Battery*2 (not included) | 18. Operating humidity range: 0 — 97% RH |
| 6. Remote control distance: 225 meters (customizable to 5 kilometers) | 19. Special address code: 32bit＞4.2 billion |
| 7. Frequency range: 315/433/868/MHZ (customizable) | 20. Transmitter power supply voltage: 1.8V—3.6V DC |
| 8. Signal transmission rate: 9600 BIT/S | 21. Transmitter operating current: ≤ 30 MA |
| 9. Transmitting power: ≤10mw | 22. Power saving protection: Automatic shutdown can be set (time can be set to 0-30 minutes) |
| 10. Frequency tolerance: 4ppm | 23. Receiver power supply voltage: AC/DC 12V-65V AC/DC 65V-440V |
| 11. Adjacent channel suppression: 60 DB | 24. Receiver rated power: ≤ 6MW |
| 12. Modulation mode: GFSK | 25. Signal output mode: fully airtight relay output |
| 13. Channel spacing: 200KHZ | 26. Output interface: terminal output |
Product application
Where can our radio remote controls be used
Agricultural radio remote control

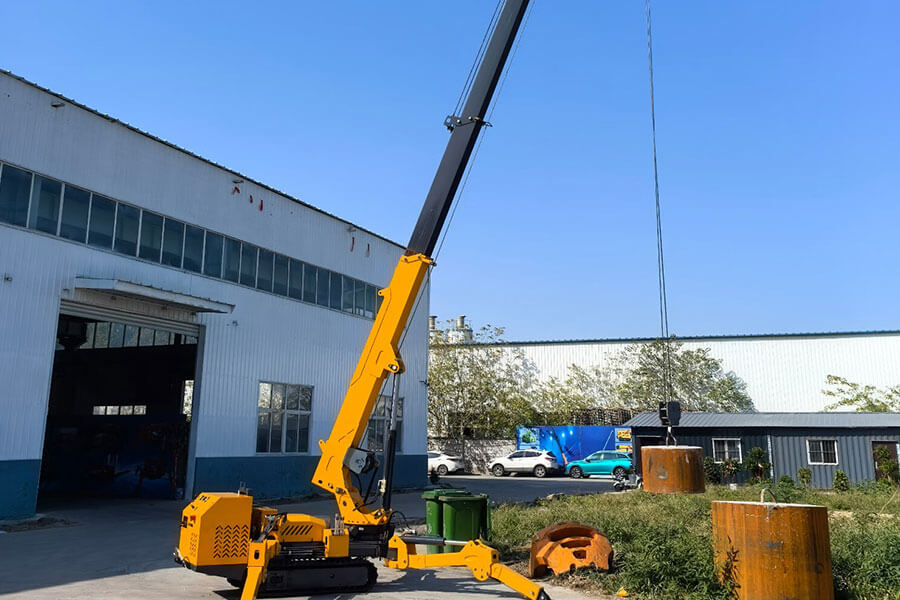

Hoist radio remote control
CNC radio remote control
Robot radio remote control
Mining radio remote control
Excavator radio remote control
Hydraulic valve radio remote control
Ship radio remote control
Forestry radio remote control
More Custom Radio Remote Controls
Our remote wireless remote controls can currently be used in many fields. If you need, we can also provide you with a customized remote control system.
Product Advantages
Advantages about the radio remote controls we produce
Operational flexibility:
The radio remote controls we produce can be operated from a distance away from the equipment, thus avoiding danger and inconvenience. And with an easy-to-understand user interface and intuitive controls, operation is simpler and more intuitive.
Improve safety:

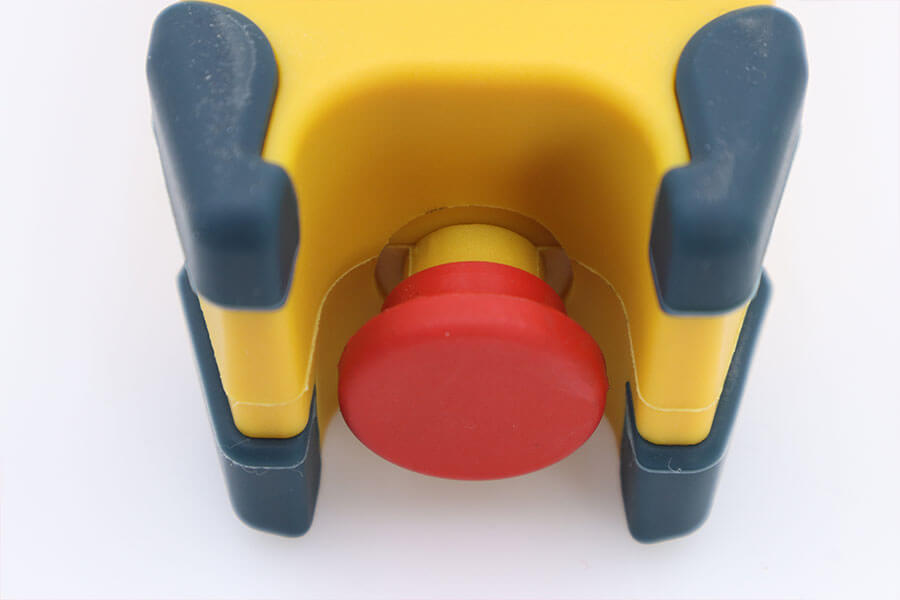

The operator can control the equipment from a safe distance, reducing the risks that may be caused by direct operation of the equipment. It is also equipped with an emergency stop button to quickly stop the equipment in an emergency to ensure the safety of personnel and equipment.
Improve production efficiency:
The remote control enables operators to move and position equipment more quickly, thereby improving work efficiency. There is no need to manually adjust the position of the equipment or perform other tedious operations, which can save a lot of time and energy.
Cost savings:
The use of remote controls can reduce the demand for manual labor and reduce labor costs. The maintenance cost of remote controls is relatively low, and due to their long life and durability, they can save maintenance costs in the long run.
Strong adaptability:
Industrial remote controls are generally suitable for many types of industrial equipment and machinery, and can be used in various environments, including indoors, outdoors, high temperature, low temperature, humidity and other harsh conditions.
Easy integration:
The remote controls we produce are easy to integrate and can be seamlessly connected to existing industrial control systems and equipment. They can be easily integrated into existing production processes without causing additional trouble or cost.
Our Services
Excellent service and shipping
As a professional manufacturer of industrial wireless remote control systems, we provide the best service to every customer and strive for excellence in every product. We put in a lot of effort from product packaging to after-sales service.

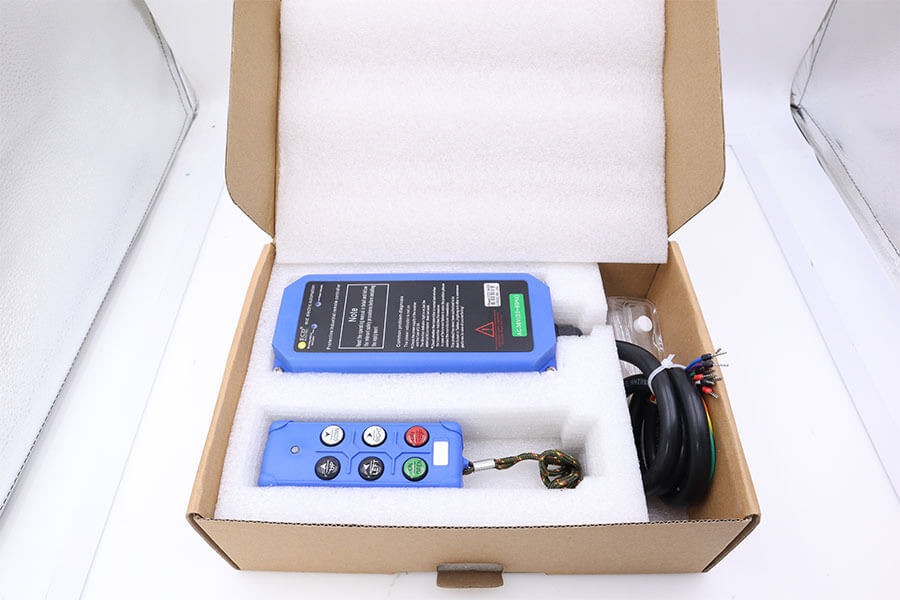

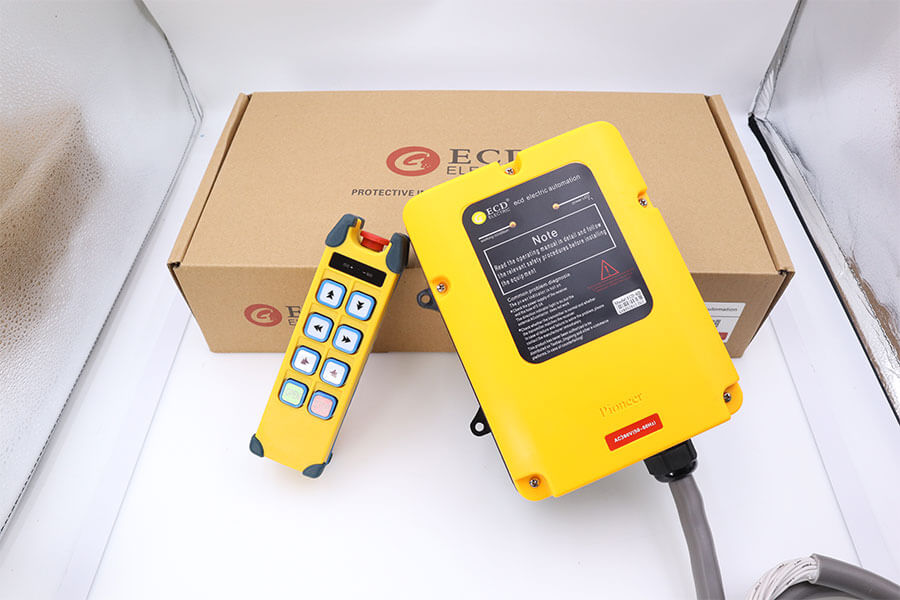

All products of Henan Nomi are shipped after quality inspection. All products are packed in boxes, filled with anti-collision strips inside and wrapped with plastic wrap outside to ensure that the machine has no risk of damage during transportation.
All wireless remote control products of our company provide 12 months quality assurance. If you have any problems during use, you can communicate with us and our after-sales engineers will solve them for you in time.
Our advantages
Why clients choose us
ODM & OEM Service
We can provide customers with exclusive customized services and provide customers with high-quality products.
Professional Team
We have a professional team that can feel the needs of customers well, solve problems and provide better services.
High Quality
We carefully make each product to provide customers with the best service in reality, and have hundreds of products.
Factory Direct Sales
A 6-year-old factory equipped with professional dust-free workshop assembly lines and factory direct sales.
Complete production line process
professional factory manufacturer
FAQ
More details about industrial radio remote controls you want to know
I don’t know how to choose the right model
If you don’t know how to choose a suitable remote control, please contact us and tell us your application field, our sales team will recommend the most suitable industrial remote control for you.
Where do you ship from?
We are a Chinese manufacturer of industrial radio remote controls. All equipment is manufactured and shipped from our factory in China. We can ship by sea, land, air and many other modes.
Do you have warranty?
All our brand products have 12 months warranty. We provide 24-hour after-sales service and technical support. If you find any problems during installation, please feel free to contact us.
How should I contact you?
If you have any purchasing needs or need any help, you can contact us through our WhatsApp or email. If you want to come for an inspection, you can also contact us to make an appointment.
Do you have an instruction manual?
All our products have detailed product introductions and operating instructions. If you need a more detailed electronic version, please contact us at any time.
How is the quality of your products?
All our company’s products adopt standard production processes, and all industrial remote controls have obtained EU CE certification and US FCC certification.
